30 Ton Tire-to-Tire Upside Down Skid Steer Log Splitter (3030)

30 Ton Splitting Force • 10" Heavy-Duty Beam • Universal Skid Steer Mount • Made in the USA

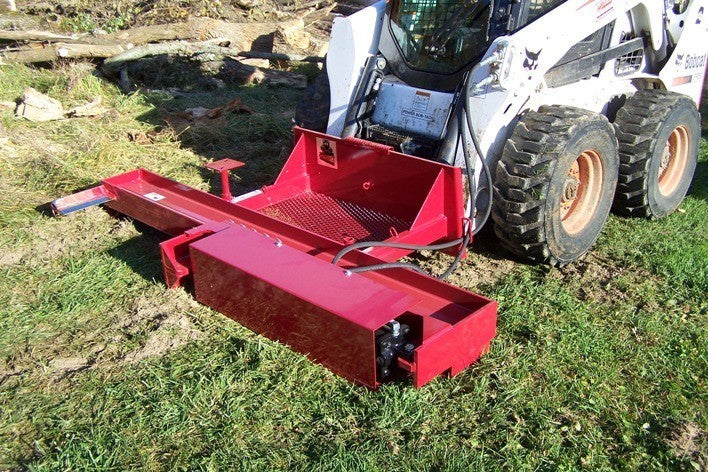

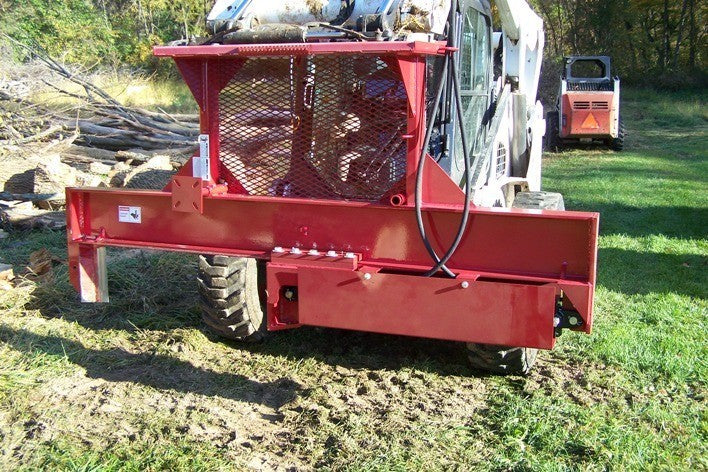

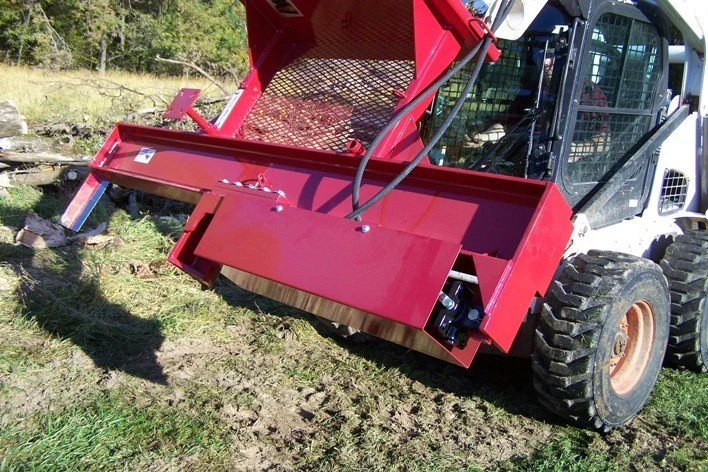

Turn your skid steer into a powerful firewood-processing machine with the 3030 30 Ton Tire-to-Tire Upside Down Skid Steer Log Splitter. Designed for skid loaders with a compatible universal quick-attach mounting system, this attachment delivers up to 30 tons of splitting force and allows you to split logs directly from the operator’s seat.

The tire-to-tire design provides excellent maneuverability and improved visibility compared to many traditional skid steer splitter attachments. This splitter can be used in two operating positions: upside down for splitting logs on the ground, or facing forward for alternative splitting and positioning applications.

Available with your choice of a 30-inch opening using a 5" x 30" welded cylinder, or a 36-inch opening using a 5" x 36" welded cylinder, this splitter can be configured for standard firewood lengths or larger wood stove and outdoor boiler applications.

A built-in tool basket and vise holder provide a convenient place to carry tools while working, and hydraulic hoses with flat-face disconnects are included for connection to compatible skid steer hydraulic systems.

Key Features & Benefits

• 30 Tons of Splitting Force
  Delivers up to 60,000 lbs. of splitting power for tough firewood-processing jobs.
• Tire-to-Tire Skid Steer Design
  Provides excellent maneuverability and improved visibility while working from the skid steer seat.
• Two-Way Splitting Capability
  Can be used in an upside down position or a facing forward position, giving operators more flexibility in the field.
• Choice of 30" or 36" Opening
  Choose the standard 5" x 30" cylinder or upgrade to a 5" x 36" cylinder for longer logs.
• Heavy-Duty 10" Beam
  Rugged beam construction provides strength and durability for demanding splitting applications.
• 5" Welded Cylinder with 2.5" Rod
  Built for heavy-duty hydraulic performance and long-term use.
• 12" High Single Wedge
  Durable wedge is designed to handle large rounds and difficult splitting conditions.
• Optional 4-Way Wedge
  Slip-on 4-way wedge bolts behind the single wedge and can be removed when not needed.
• Universal Skid Steer Mounting Plate
  Fits compatible skid steers using the universal two-lock-handle quick-attach style mounting system.
• Tool Basket and Vise Holder Included
  Provides a convenient way to transport tools and accessories while working.
• Hydraulic Hoses and Flat-Face Disconnects Included
  Comes equipped for connection to compatible skid steer hydraulic systems.
• Made in the USA
  American-made splitter built for dependable long-term performance.
• Durable Painted Finish
  Splitters are sandblasted, wiped down, and painted with Diamond Vogel Pinnacle 460 3.5 VOC two-part polyurethane.

Available Options

• 36" Opening Upgrade
  Upgrade to a 5" x 36" welded cylinder for longer firewood, larger rounds, or outdoor boiler applications.

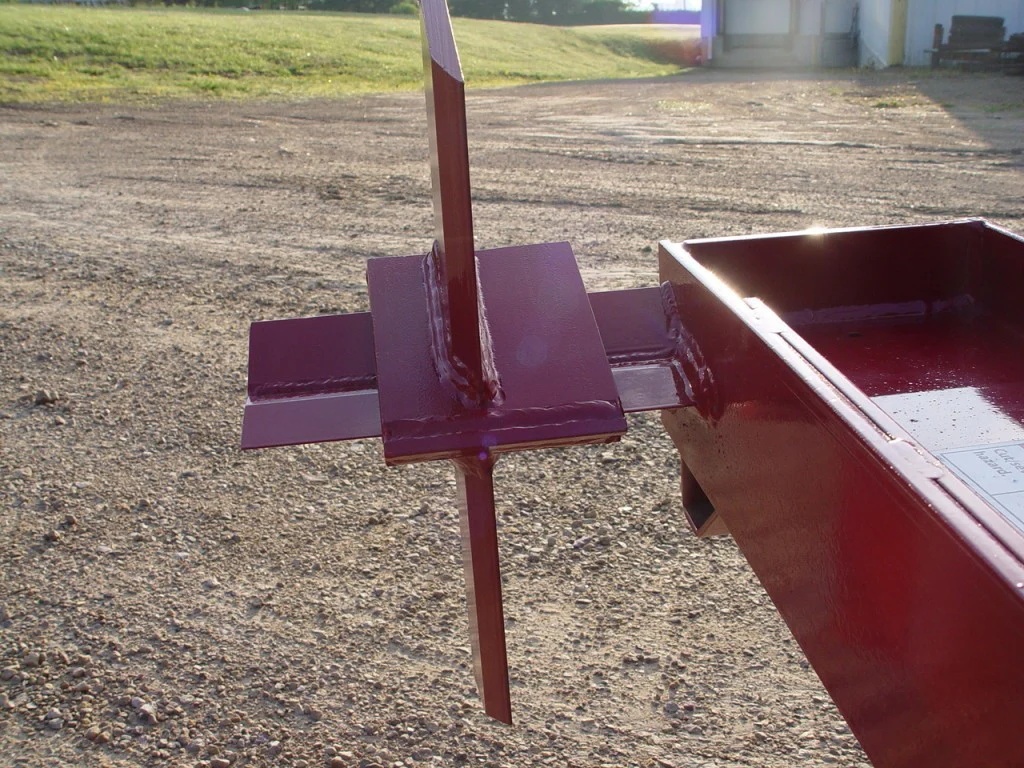

• Optional 4-Way Wedge
  A 22-inch-wide slip-on 4-way wedge bolts behind the single wedge for faster splitting of suitable logs.

Ideal Applications

The 3030 Tire-to-Tire Skid Steer Log Splitter is well suited for:

• Firewood production
• Farm and ranch use
• Woodlot cleanup
• Tree service work
• Land clearing
• Large round splitting
• Outdoor boiler firewood
• Skid steer owners who want to reduce manual lifting
• Loading and processing wood near trailers, wagons, or wood piles

Quick Specifications

Specification	Details
Model	3030
Equipment Type	Tire-to-Tire Upside Down Skid Steer Log Splitter
Splitting Force	30 Tons / 60,000 lbs.
Standard Cylinder	5" x 30" Welded Cylinder
Optional Cylinder	5" x 36" Welded Cylinder
Cylinder Rod	2.5"
Standard Opening	30 in.
Optional Opening	36 in.
Beam	10" Heavy-Duty Beam
Beam Length	84 in. or 96 in.
Wedge	Single 12" High Wedge
Optional Wedge	22" Wide 4-Way Wedge
Mounting Plate	Universal Skid Steer Quick Attach
Hoses and Connectors	Included
Color	Red Only
Weight	830 lbs.
Warranty	1-Year Limited
Made in USA	Yes

Shipping and Delivery Information

This log splitter ships by freight truck. The customer is responsible for unloading the crate from the truck. Some assembly may be required.

Important Compatibility Information

Confirm that your skid steer has a compatible universal quick-attach mounting system and the hydraulic flow, pressure, and coupler setup required to operate this attachment. Always follow the manufacturer’s operating and safety instructions when connecting, lifting, transporting, or splitting logs.
